Vacusill pediatric CONT/INT

The VACUSILL® 3 Pediatric Cont-Int, continuous-intermittent vacuum regulators, are medical devices that are powered by a vacuum source of 120 L/min – 80 kPa allowing two models of operation:
CONT: continuously regulated suction according to the scale, making it possible to adjust the maximum suction pressure, which will remain stable in the event of pressure fluctuations in the hospital pipeline.
INT: regulated intermittent suction that alternates from time to time between OFF and CONT (2:3), and can also increase or decrease the frequency by slowly turning the screw of the intermittent piston.
Compatible with MRI.

DOWNLOADS:

Categories: ,

Enquiry about Vacusill pediatric CONT/INT

Description

  • CONT/INT mode selection knob and pressure regulator knob.
  • Negative pressure relief valve.
  • Water trap with overflow protection and particle filter.
  • Whitworth G1/4″ F inlet thread.
  • Range: O-20 kPa / 0-150 mmHg.
  • Accuracy: ± 5%.
  • Flow: 50 L/min (INT: 9 L/min).

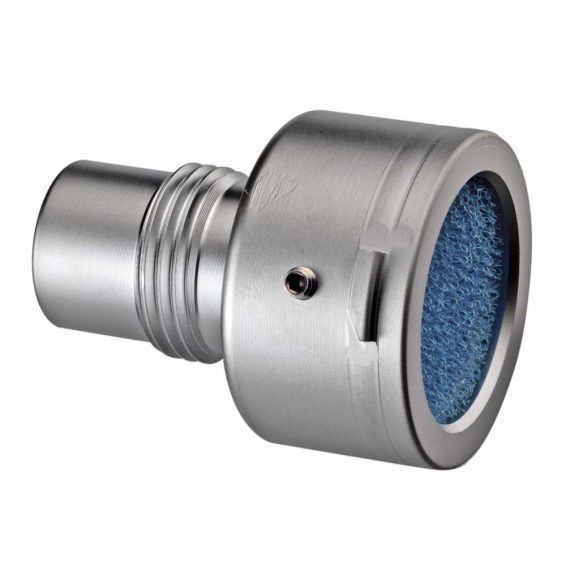

  • Available with fittings: BS, NF, DIN y SS. For other fittings, please consult.

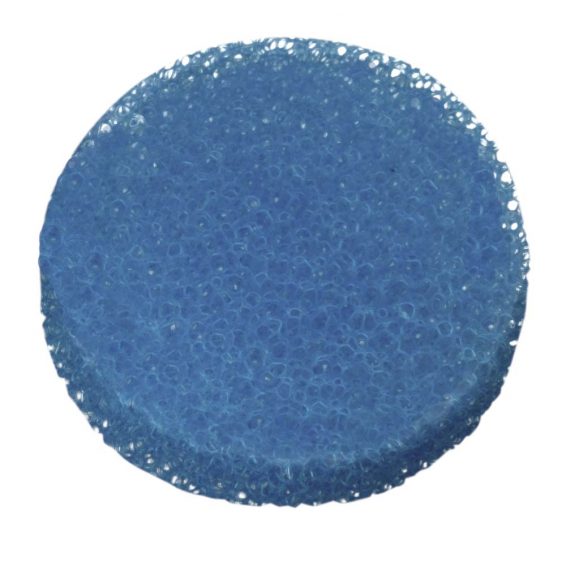

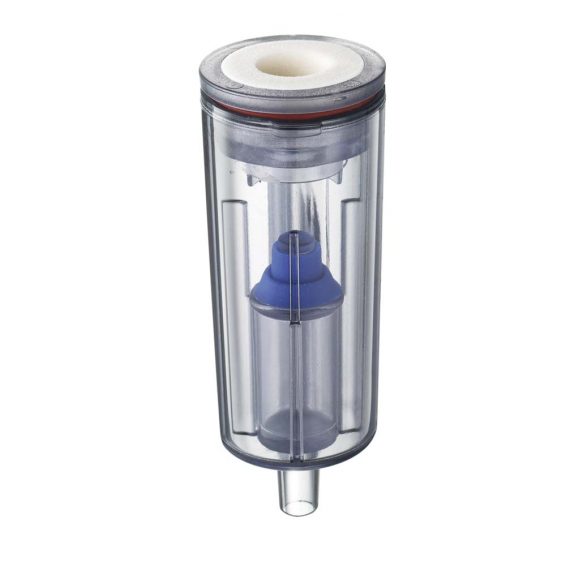

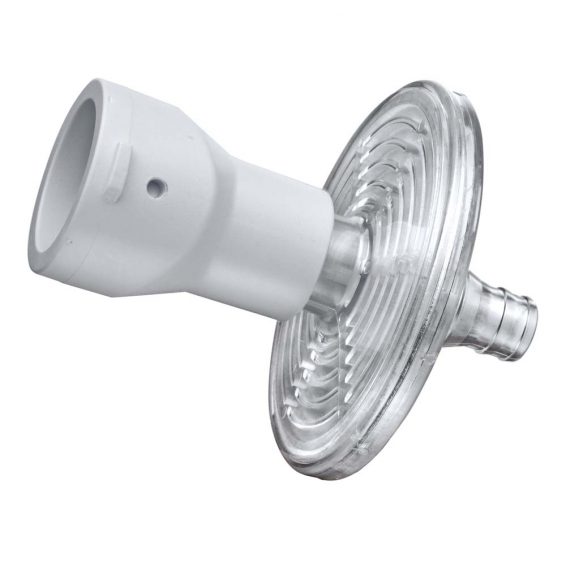

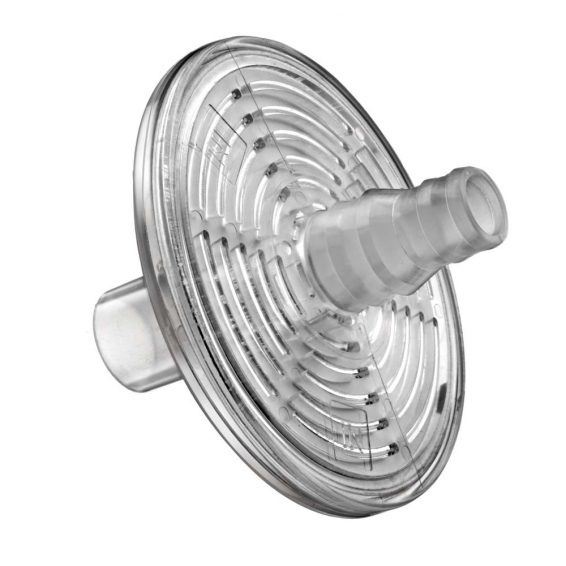

  • Available with SafeyTrap water trap with overfill protection and high efficiency particle filter or hydrophobic antibacterial and antiviral filter.

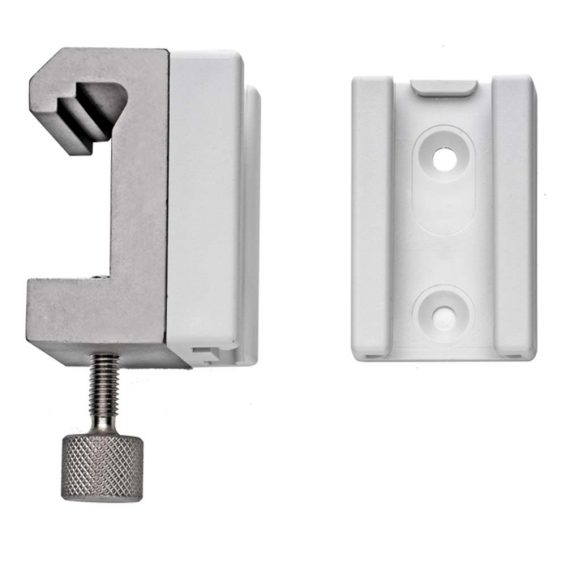

  • Possibility of being supplied with an autoclavable PC1/PSU1 – PC2/PSU2 – PC4/PSU4 (consult more details about capacity and scale in the suction jar section), rolling support and rail coupling system.
  • Materials: anodized aluminum body, PC scale, Viton O-rings, inlet thread (without fitting) Whitworth G1/4″ F in anodized aluminum. Latex-free.
  • Dimensions: 160 mm x 114 mm x 105 mm.
  • Weight: 710 g.

Optional accessories: consult brochure.
