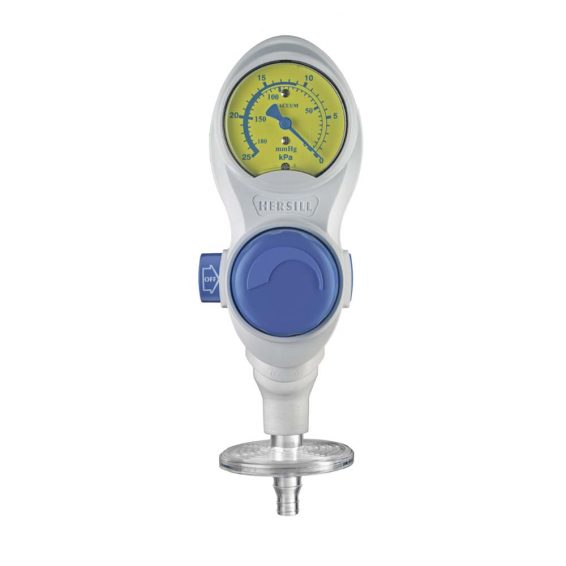

Description
- ON/OFF switch for quick opening and closing, with pressure relief valve overflow when vacuum gauges are in OFF mode.
- Safety relief valve for excess vacuum.
- Water trap with overflow safety valve and particle filter.
- Whitworth G1/4” F inlet thread.
- Range: 0-20 kPa / 0-150 mmHg.
- Accuracy: ± 5%.
- Flow: 90 L/min.
- Available with fittings: BS, NF, DIN and SS. Consult availability of other connections.
- Available with SafeyTrap water trap with overflow safety system and high efficiency particle filter or viral hydrophobic bacterial filter.

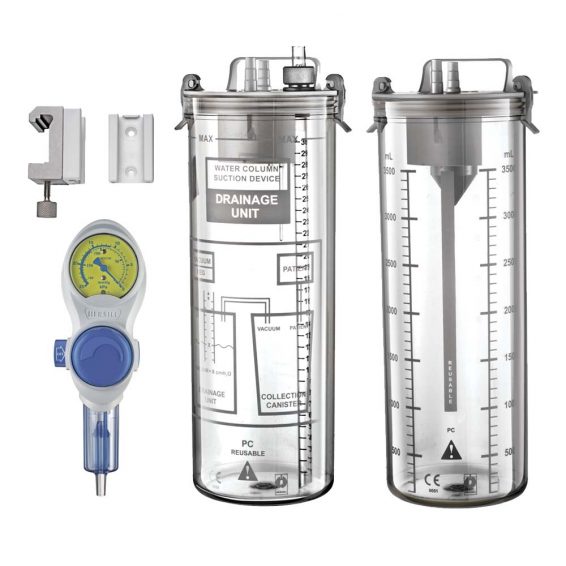

- Possibility of being supplied with PC/PSU collection jar, PC1/PSU1 – PC2/PSU2 – PC4/PSU4 (consult more details about capacity and scale in the suction jar section), rolling support and rail coupling system.
- Materials: body in ABS-PC, O-rings in NBR and silicone. Vacuum gauge cover in PC. Whitworth thread G1/4” F (without fitting) in stainless steel. Latex-free.
- Dimensions: 240 mm x 86 mm x 86 mm.
- Weight: 360 g.
Optional accessories: consult brochure.
