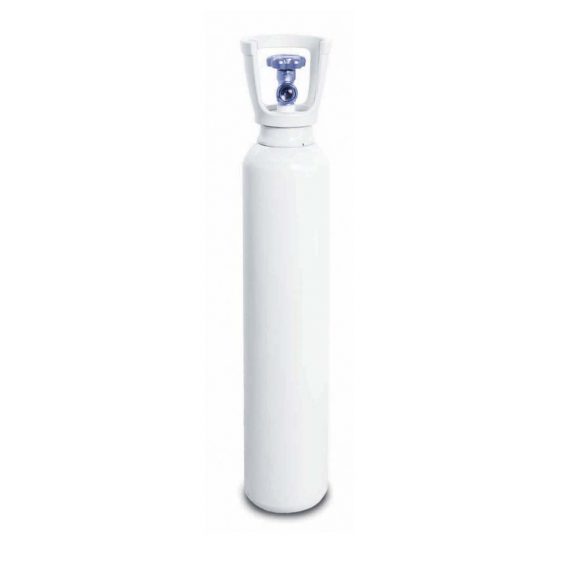

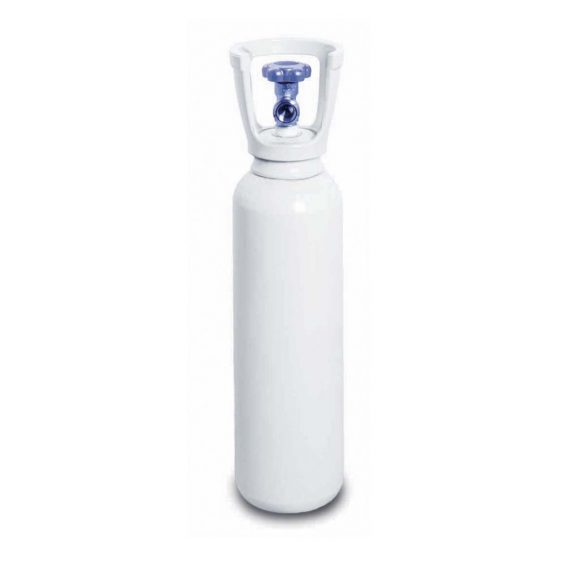

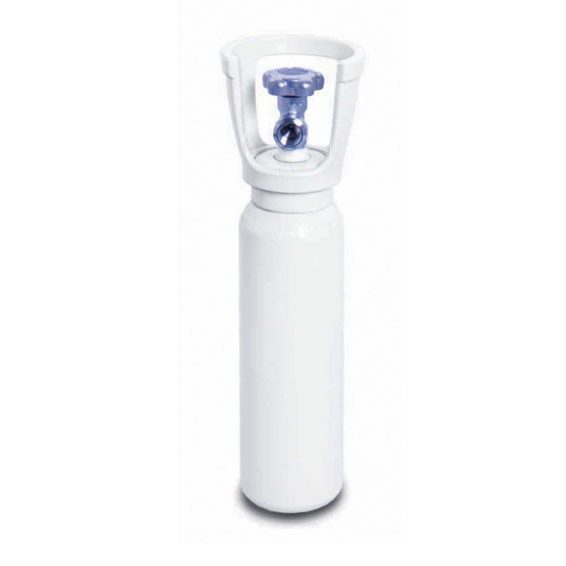

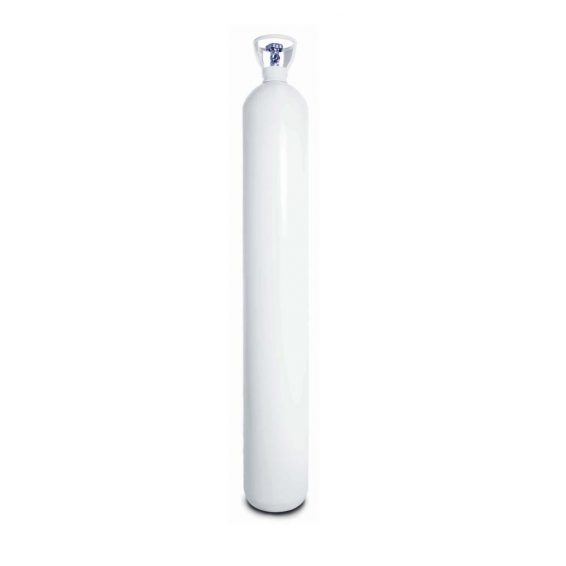

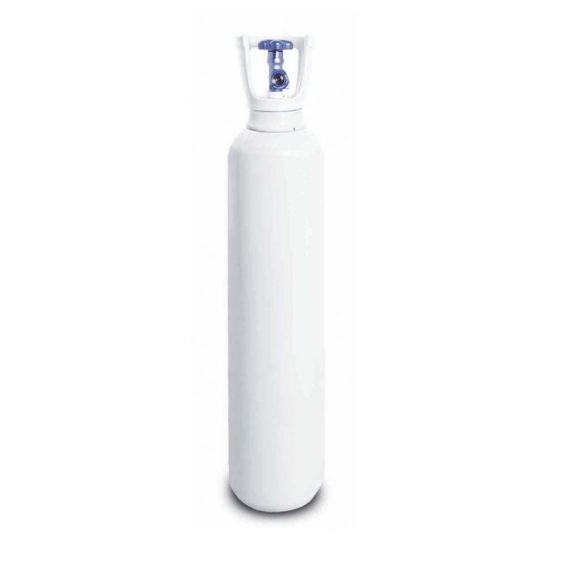

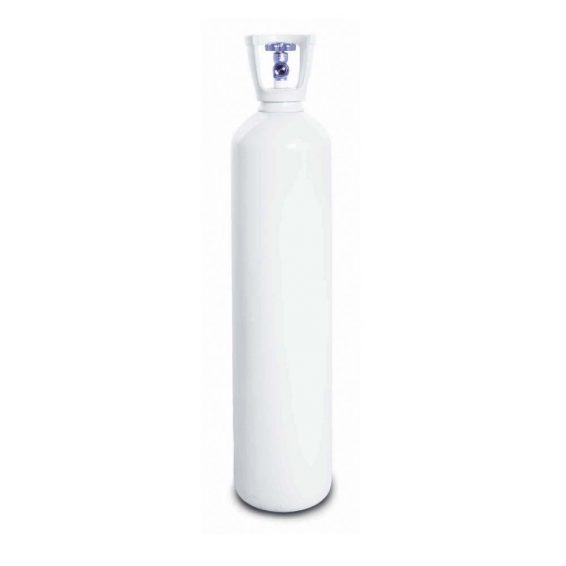

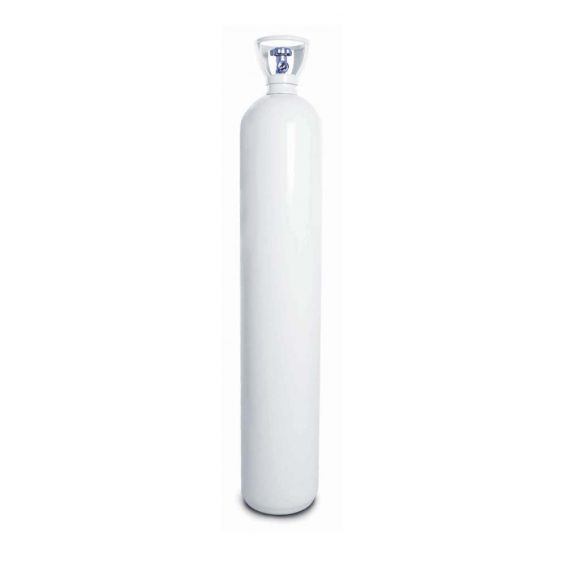

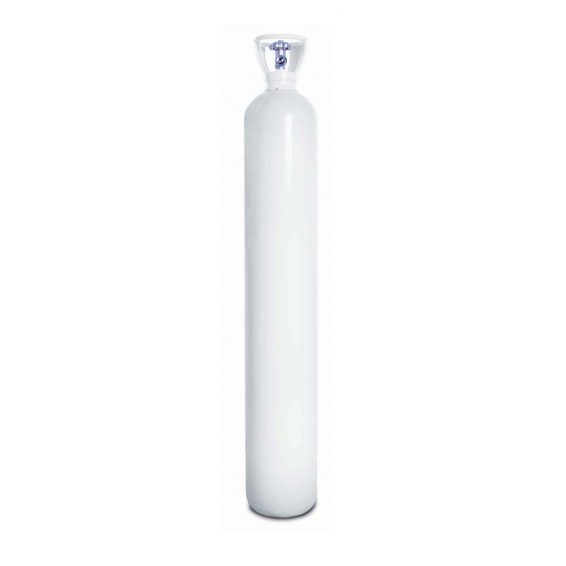

Oxygen cylinders

Medical oxygen cylinders made of steel alloy (34CrMo4) according to ISO 9809-1:2020, numbered and with traceability system. Supplied without oxygen charge.

DOWNLOADS:


Description

  • They are supplied without oxygen charge.
  • Equipped with tulips from 5 L.
  • Available in various sizes and with NF valve. Other sizes and types of valves: DIN, NF, BS, CGA 540, PIN INDEX, etc… Check availability.
  • Painted white RAL 9010.
  • Regulation: ADR 2009 99/36/CE UNE EN 1964-1.

Optional accessories: consult brochure.

Capacity / Volume O2 400 L 1000 L 2000 L
Dimensions:

    Volume (L)

    Outer Diameter (mm)

    Height (mm)

2

102

458

5

140

568

10

140

954

Weight (Kg) 4,4 8 12,6
Working pressure (bar) 200
Test pressure (bar) 300
